MLK-G1510 |
MLK-G3020 |

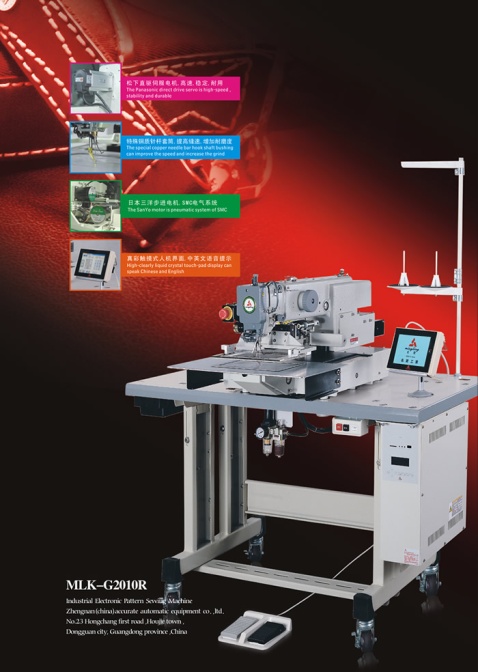

MLK-G2010R |
|
|
|

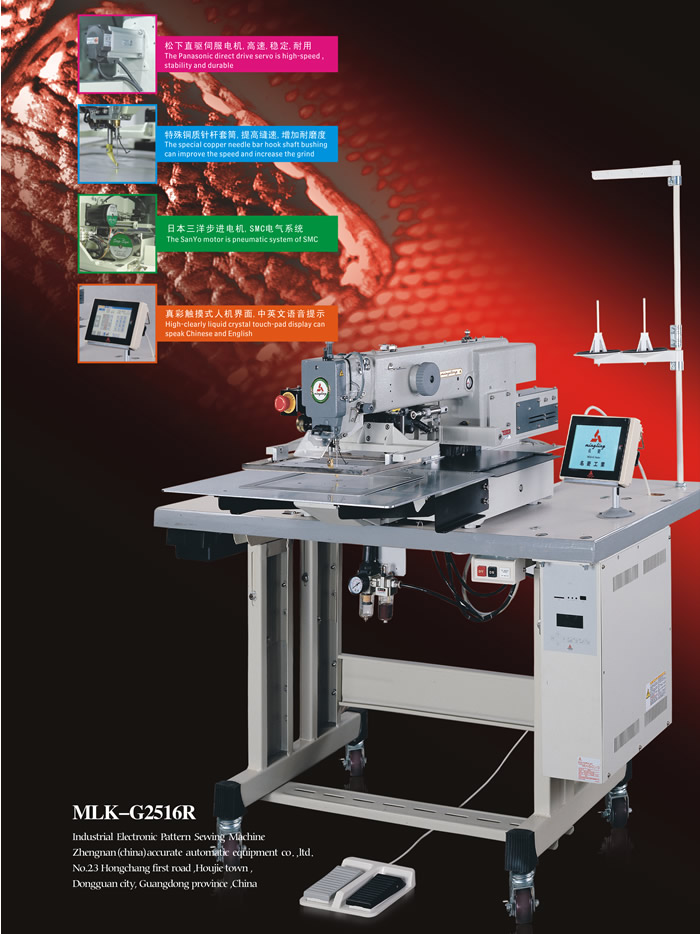

MLK-G2516R |

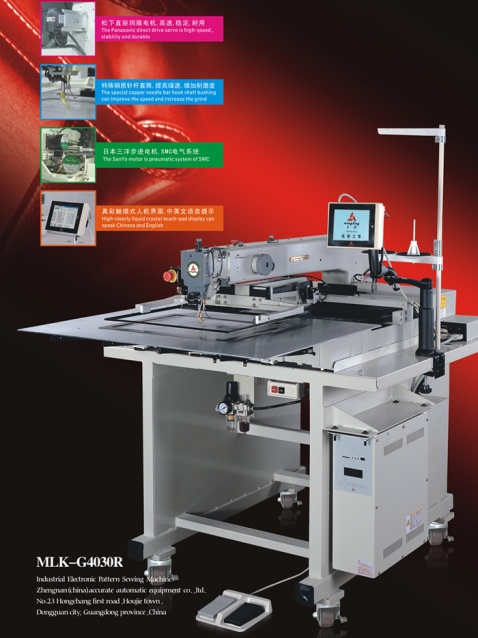

MLK-G4030R |
|
| |
|
|
Applicable scope, stable performance, can be suitable for various moves. Stepping motor medium-voltage feet high automatic adjustment device, 750W direct driving speed servo motor, save
The warranty year, lifelong maintenance and technical service
|
|
|
|
|
|
|
|
Specifications:
Sewing area:200mm*100mm
Max sewing Speed:2800rpm
Sewing speed selection:200-2300rpm,(10 steps variable)
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Max.number of stitches:8000 stitches/pattern
Max.number of pattern:3.5*2HD disk or internal memory\USB\SD scale.up/downfunction:10-200%for each X.&y.axis(0.1%increment/srep)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Work holer Stroke:32mm
stepping foot Stroke:20mm
stepping foot working:4-10mm
Main driving motor:the Panasonic sirect drive servo 450W/750W
Power supply:alternating current 220V,With the ground connecttion protect measurement:(L*W*H):1200mm*920mm*1170mm
Mass:145KG
Function and advantage:apply to the wide range,and the stability powerful,it can fit kinds of the difficulty move,and the speed is fast,it can reduce the operating workers.
using:sewing the leather,bags,shoes and athletics equipment,atc.
packaging:with the wooden case
After-service:the whole set guarantee one year,keep in good repair lifelong and follow the tracks of the technique service |
|
|
|
 |
Specifications:
Sewing area:250mm*160mm
Max sewing Speed:2800rpm
Sewing speed selection:200-2800rpm,(10 steps variable)
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Max.number of stitches:8000 stitches/pattern
Max.number of pattern:3.5*2HD disk or internal memory\USB\SD scale.up/downfunction:10-200%for each X.&y.axis(0.1%increment/srep)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Work holer Stroke:32mm
stepping foot working:4-10mm
Main driving motor:the Panasonic sirect drive servo 450W/750W
Power supply:alternating current 220V,With the ground connecttion protect measurement:(L*W*H):1450mm*1060mm*1250mm
Mass:170KG
Function and advantage:apply to the wide range,and the stability powerful,it can fit kinds of the difficulty move,and the speed is fast,it can reduce the operating workers.
using:sewing the leather,bags,shoes and athletics equipment,atc.
packaging:with the wooden case
After-service:the whole set guarantee one year,keep in good repair lifelong and follow the tracks of the technique service
Mass:176KG
|
|
|
|
|
|
Specifications:
Sewing area:400mm*300mm
Max sewing Speed:2500rpm
Sewing speed selection:200-2500rpm,(10 steps variable)
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Max.number of stitches:8000 stitches/pattern
Max.number of pattern:3.5*2HD disk or internal memory\USB\SD scale.up/downfunction:10-200%for each X.&y.axis(0.1%increment/srep)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Work holer Stroke:32mm
stepping foot storke:20mm
stepping foot working:4-10mm
Main driving motor:the Panasonic sirect drive servo 450W/750W
Power supply:alternating current 220V,With the ground connecttion protect measurement:(L*W*H):1450mm*1100mm*1250mm
Mass:380KG
Function and advantage:apply to the wide range,and the stability powerful,it can fit kinds of the difficulty move,and the speed is fast,it can reduce the operating workers.
using:sewing the leather,bags,shoes and athletics equipment,atc.
packaging:with the wooden case
After-service:the whole set guarantee one year,keep in good repair lifelong and follow the tracks of the technique service
Mass:176KG |
|
|
|
|
|
MLK-E4030R |

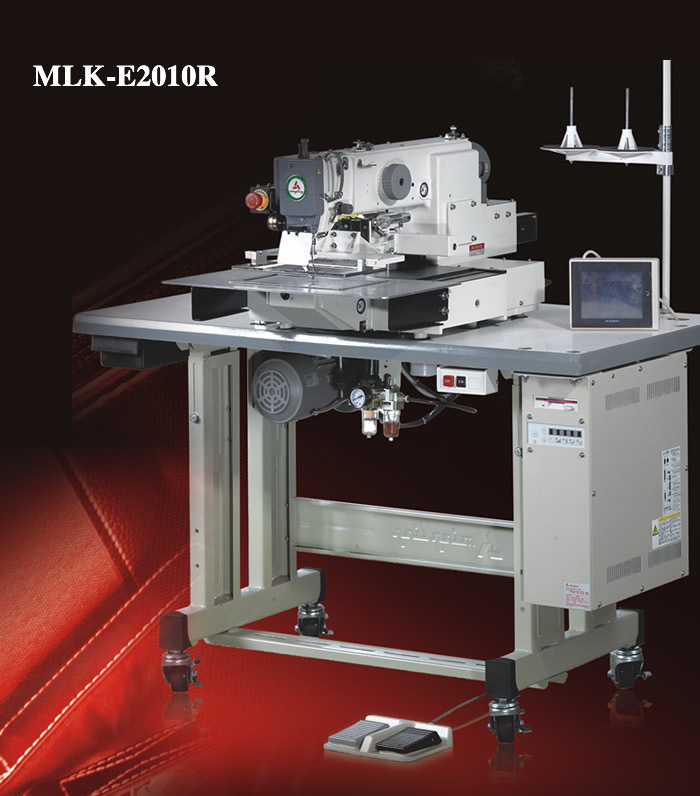

MLK-E2010R |

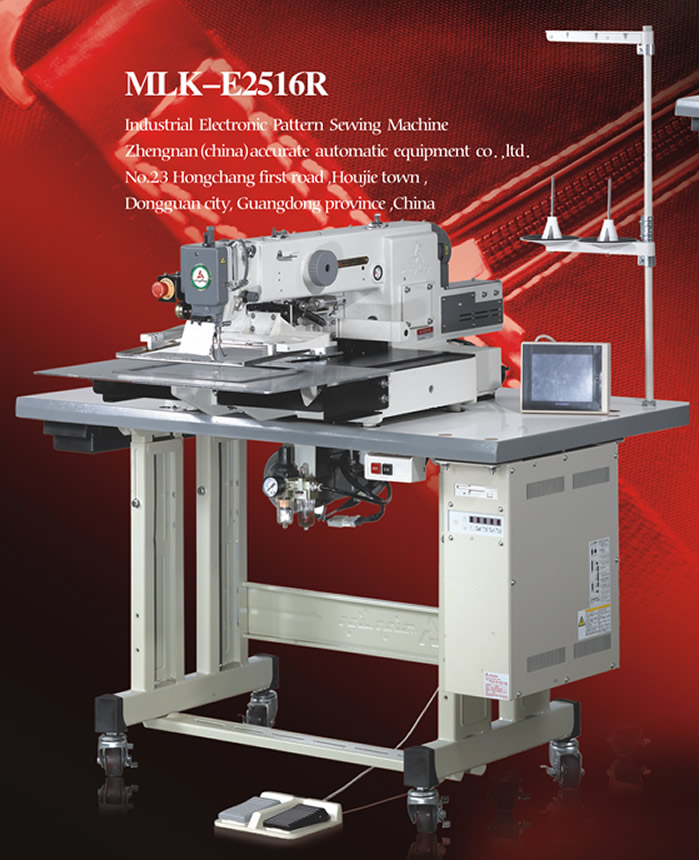

MLK-E2516R |
| |
 |
|
 |
Specifications:
Sewing area:400mm*300mm
Max sewing Speed:2300rpm
Sewing speed selection:200-2000rpm,
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Main driving motor:magnetic clutch electric motor 450W/2000revolve
Power supply:alternating current 220V,
Mass:380KG |
 |
|
|
|
 |
Performance：
sewing area:200mm*100mm
Max sewing speed:2300rpm
Sewing speed selection:200-2300rpm
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneummatic
Main driving motor:magnetic clutch electric motor 450W/3000revolve
Power supply:alternaing current 220V,
Mass:150KG |
 |
|
|
|
|
Specifications:
Sewing area:250mm*160mm
Max sewing Speed:2300rpm
Sewing speed selection:200-2300,
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Main driving motor:magnetic clutch electric motor 450W/3000revolve
Power supply:alternating current 220V,
Mass:176KG |
|
|
|
|
|

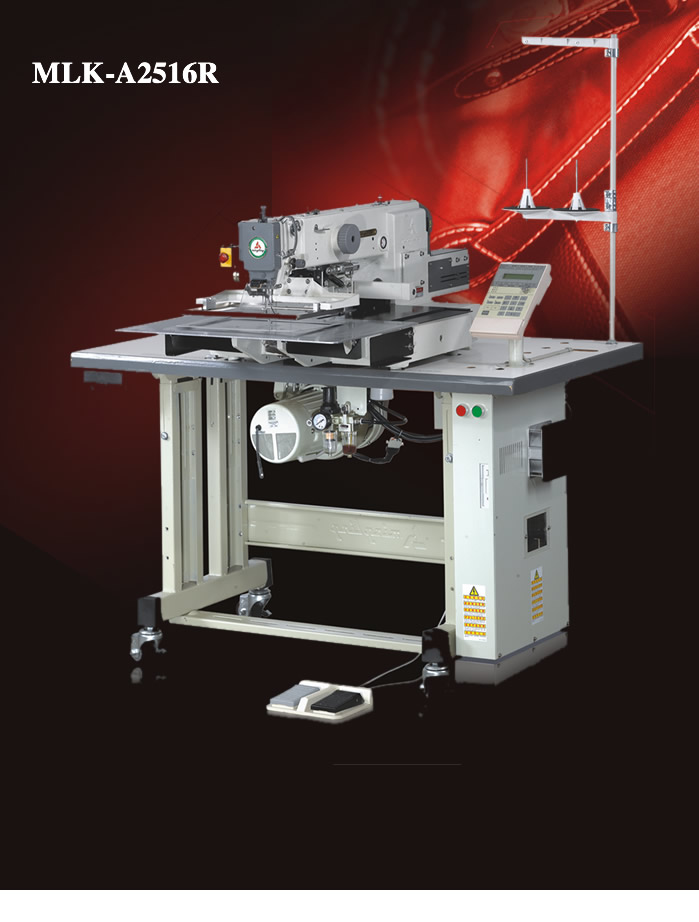

MLK-A2516R |

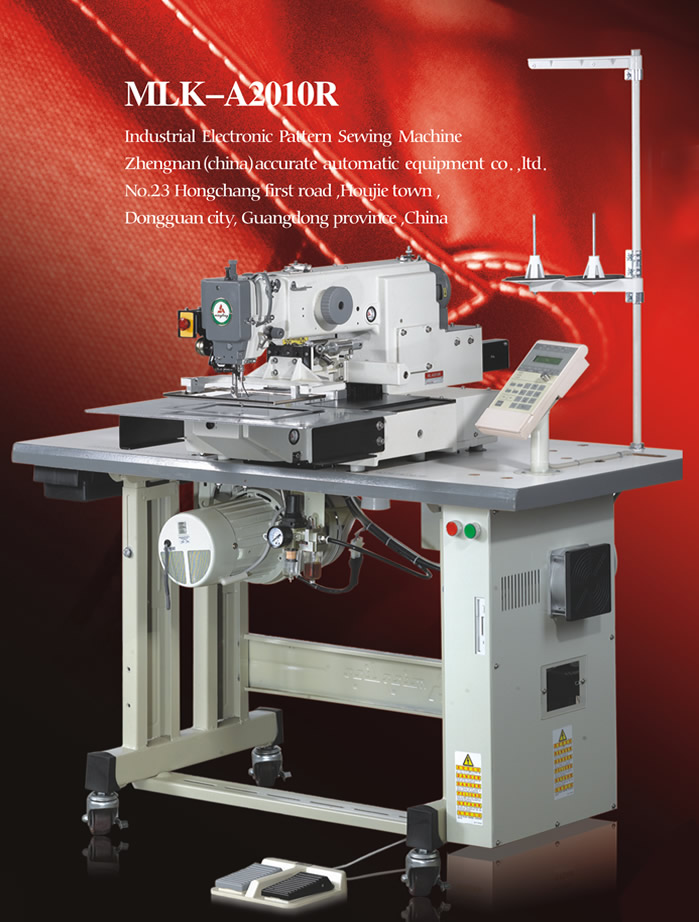

MLK-A2010R |
MLK-A1006 |
 |
|
 |
Specifications:
Sewing area:250mm*160mm
Max sewing Speed:2000rpm
Sewing speed selection:200-2000rpm,
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Main driving motor:magnetic clutch electric motor 450W/2000revolve
Power supply:alternating current 220V,
Mass:176KG |
|
|
|
|
 |
Specifications:
Sewing area:200mm*100mm
Max sewing Speed:2000rpm
Sewing speed selection:200-2000rpm,
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Main driving motor:magnetic clutch electric motor 450W/2000revolve
Power supply:alternating current 220V,
Mass:150KG |
 |
|
|
|
|
Specifications:
Sewing area:100mm*60mm
Max sewing Speed:2000rpm
Sewing speed selection:200-2000rpm,
Stitch length:0.1-12.7mm(Min gap 0.1mm)
Needle:Dp*1718#(standard)
The spindle bed:double hook complete
Presser foot system:pneumatic
Main driving motor:magnetic clutch electric motor 450W/2000revolve
Power supply:alternating current 220V,
Mass:110KG |
|
|
| |
| |
